Flush Plug: Eliminates the need to remove cartridge during installation and allows installer to flush the lines without cross flow. Can be tested using flush plug with air (200 psi) or water (300 psi).
Stainless Steel Retaining Ring with Flats: Secures test cap/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge.
Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation
CPVC Connections: Fast and easy installation without adaptors reducing leak points.
Cast DZR Brass Valve Body: Resists corrosion due to high chloride and pH levels in water.
Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations.
Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve.
1/2" CPVC inlets/Universal outlets
Includes Scredriver Stops for easy servicing at the valve
Cartridge Ships with Trim

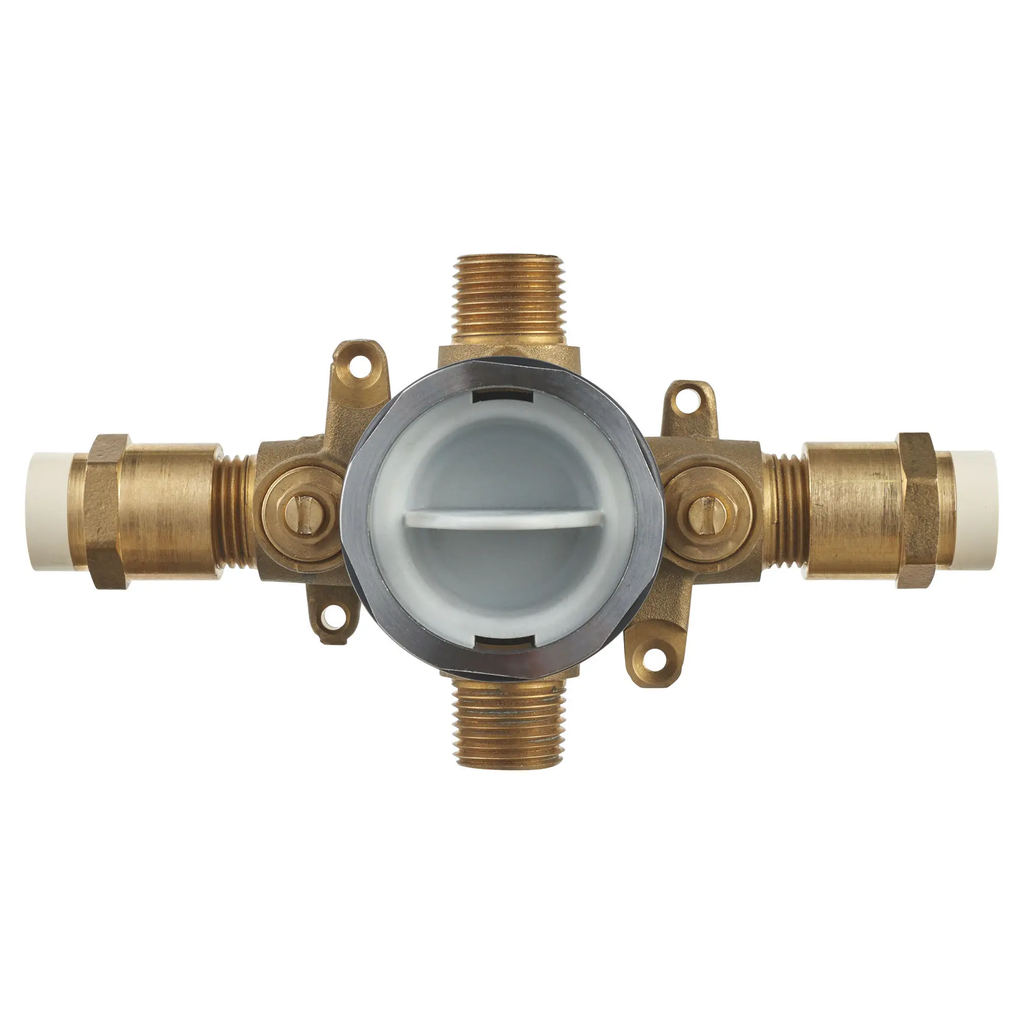

American Standard Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops
