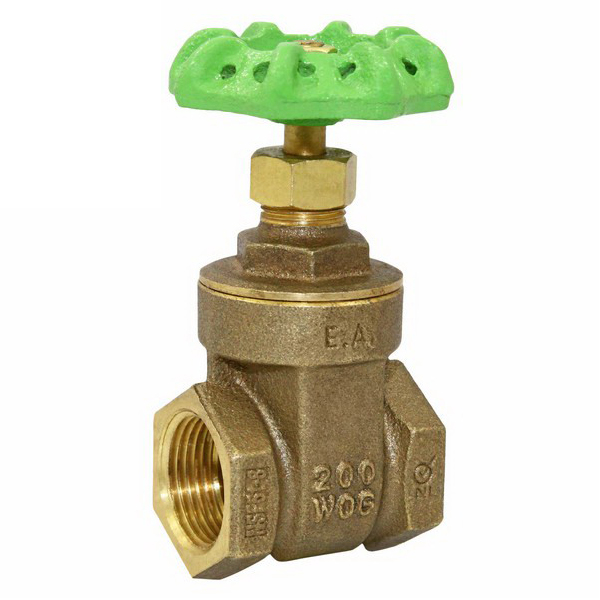

The 514T Full Port Gate Valve in lead-free brass offers a threaded bonnet and threaded ends conforming to ANSI Standards B2.1. Crafted from lead-free cast brass with a non-rising stem, it maintains a maximum working pressure of 200 WOG and 125 SWP, providing a full-port design for efficient flow control.
- 200 WOG - 125 SWP
- Full port
- Lead Free Brass
- Non-rising stem
- Threaded Bonnet
- NSF/ANSI 372
- Threaded Ends Conform to ANSI Standards B2.1
- Valves are Tested in Accordance w/ MSS-SP-82
