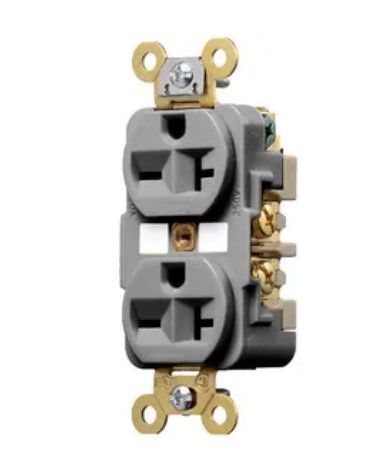

Straight Blade Duplex Receptacle, Extra Heavy Duty Specification Grade, designed for 2-pole 3-wire grounding applications at 250V. Features all-brass current-carrying components, back and side wiring, and a flush nylon face for industrial-grade reliability.
- Configuration: 2-Pole 3-Wire Grounding, NEMA 6-20R
- Amperage: 20A
- Voltage: 250V
- NEMA Rating: 6-20R
- Terminal Type: Back and Side Wired
- Terminal Accommodation: #14 to #10 AWG copper
- Material: Nylon face, brass contacts
- Color: Gray
- Operating Temp: -40 to 75 deg C
- Standards: UL 498, CSA 22.2 No. 42
